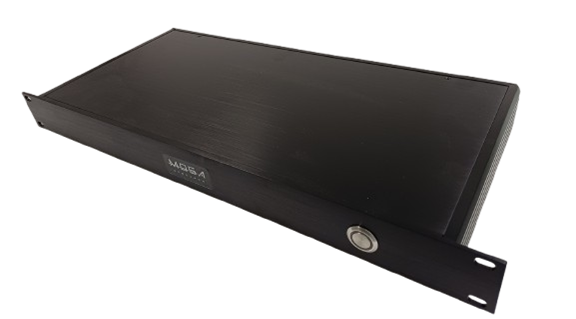

Pulse Valve Driver

A high-voltage pulse generator for driving Parker high-pressure pulse valves. It is ideal for a wide range of applications, including analytical chemistry, molecular beam, laser spectroscopy, and laser-driven high-field physics. The pulse voltage and width can be computer-programmed via Ethernet.

Standard product / Price / Lead time:
▪ PVD-26-600-E / USD$3960 / 5-6 weeks

Specifications of PVD-26-600-E:
▪ Burst voltage*: 225 V…600 V (step: 25 V)
▪ Burst width*: 10 μs…320 μs (setp: 1.25 μs)
▪ Holding voltage*: 11V…26 V (step: 1 V)
▪ Holding width*: 0.25 ms…500 ms (step: 125 μs)
▪ Firing rate: 0…100 Hz
▪ Trigger requirement: 0.1…100 μs, >4 V @ high-Z
▪ Internal delay: 130 ns (typical), jitter: <1 ns-rms
▪ 19” 1U case for standard 19” rack
▪ Compatible with all the Parker miniature high-speed high-vacuum dispense pulse valves.
▪ OEM version available
* Computer programmable via Ethernet.

More information can be seen here: link

Test conditions for Parker pulse valve (009-1669-900) as a guideline:
▪ Backing pressure / Burst voltage / Burst width / Hold voltage / Hold width
▪ 300 psi / 375 V / 210 μs / 21 V / 10 ms
▪ 400 psi / 425 V / 250 μs / 21 V / 5 ms
▪ 900 psi / 425 V / 270 μs / 21 V / 2.6 ms

Key words: Parker, IOTA ONE, 060-0001-900
